Architectural Speakers

Ci160QR

Features KEF’s patented Uni-Q driver array

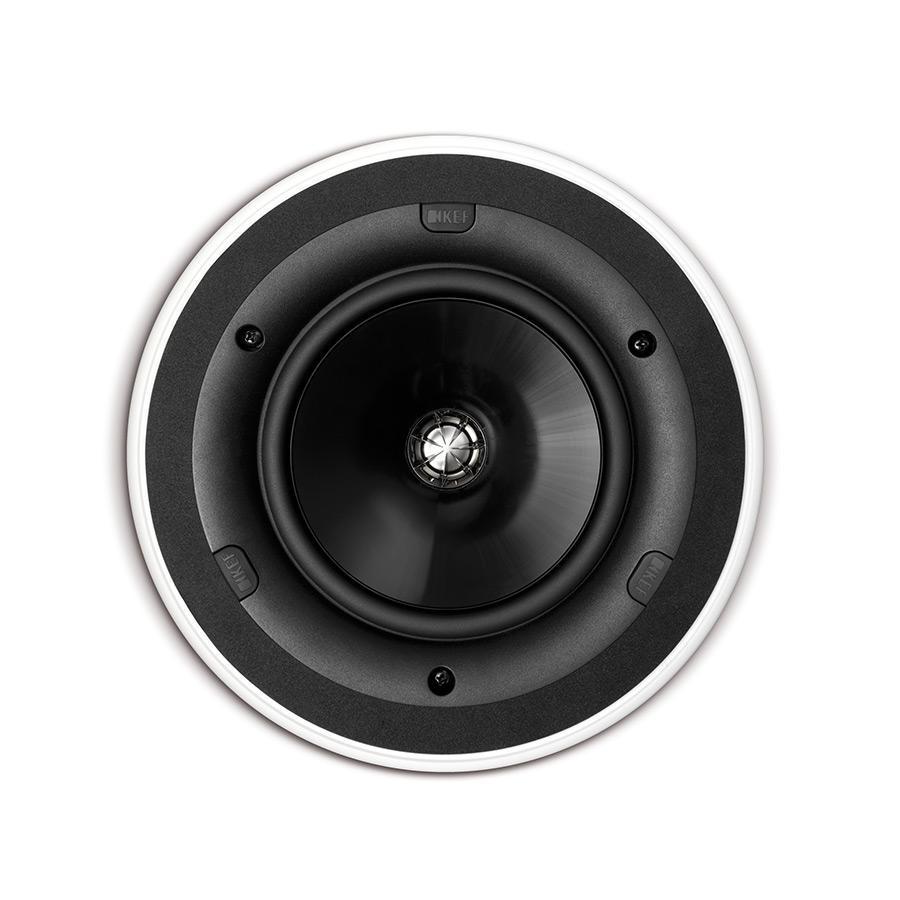

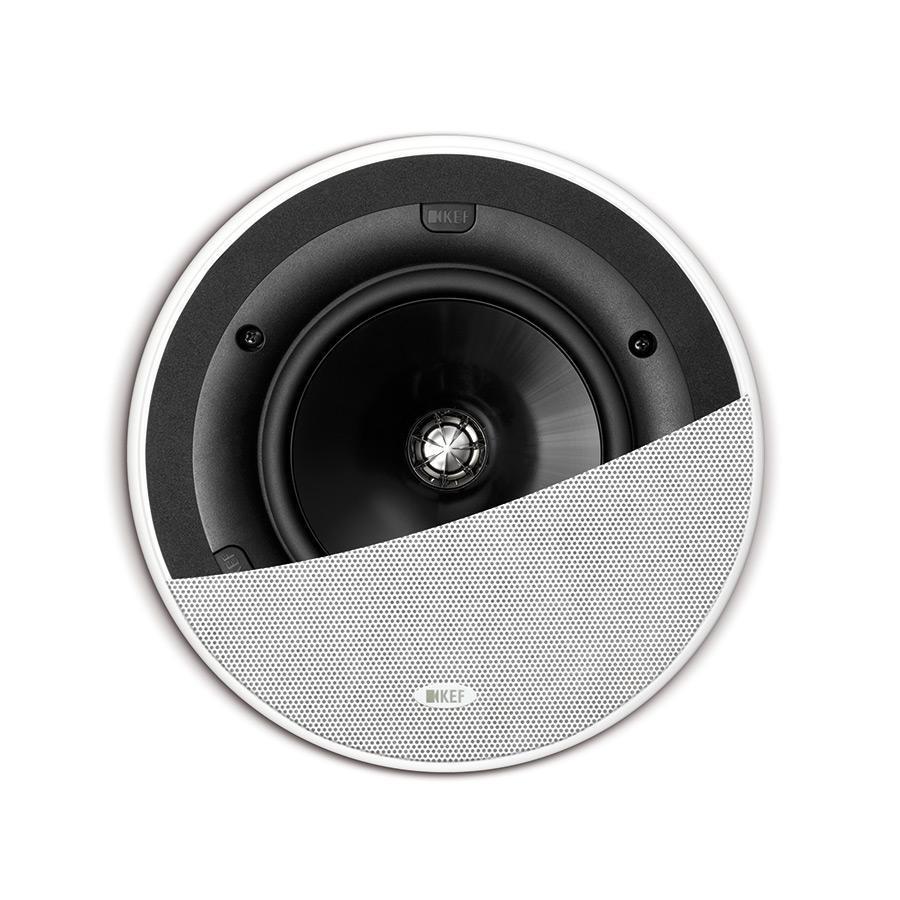

The stylish Ci160QR in-ceiling ultra thin bezel loudspeaker features a narrow rim allowing for flawless integration into your ceiling and KEF's patented Uni-Q driver, which spreads sound over a wider area - enabling you to use less speakers while optimizing the soundstage.
Enquiry
Where to Buy

Ci160QR

Featuring KEF's sophisticated 'sit anywhere' Uni-Q driver array, which places the tweeter in the acoustic centre of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room. Together with the discreet Ultra Thin Bezel (UTB) design, offering the slimmest possible visible rim around the speaker, the Ci-Q Series range gives you tremendous freedom to position the speakers where you please.

The Details

Key Features
UTB™ Ultra Thin Bezel
160mm (6.5in.) Uni-Q driver array
19mm (0.75in.) Aluminium dome tweeter and 'tangerine' waveguide

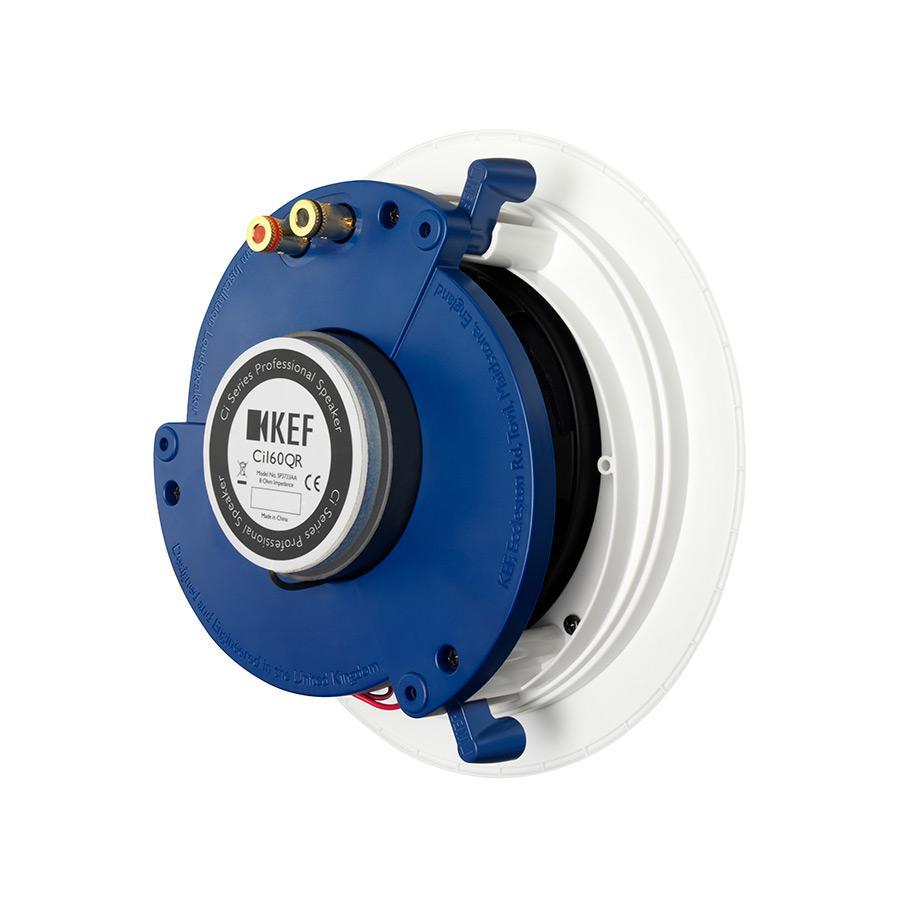

Gold plated spring loaded binding posts

Features

accordion open
UTB™ Ultra Thin Bezel
160mm (6.5in.) Uni-Q driver array
19mm (0.75in.) Aluminium dome tweeter and 'tangerine' waveguide
Gold plated spring loaded binding posts

SPECIFICATIONS

accordion open
Nomimal  Impedance
8 Ohm
Sensitivity
89dB (2.83V/ 1m)
Crossover Frequencies
3.0kHz
Frequency Response
38Hz - 34kHz (±6dB) 2pi/open-backed
Drive Units
LF: 160mm (6.5in.)
HF: 19mm (0.75in.)
Recommended Amplifier Power
10 - 125W
Product External Dimension (H X W X D)
Diameter : 234.6mm (9.24in.)
Depth : 98mm (3.86in.)
Cut-Out Dimensions (H X W)
Diameter :196mm (7.71in.)
Mounting Thickness
Ceiling Thickness (Maximum): 36mm (1.42 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Mounting Depth From Surface
Product only: 91mm (3.58in.)
Optional Rough In Frame
RIF160R
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.
