Designed to lie flush with the ceiling when not in use
Purpose built for flush mounting into ceilings, the Ci3-80QT is a powerful motorized speaker that delivers the highest quality of flushmount audio performance available.
Ci3-80QT

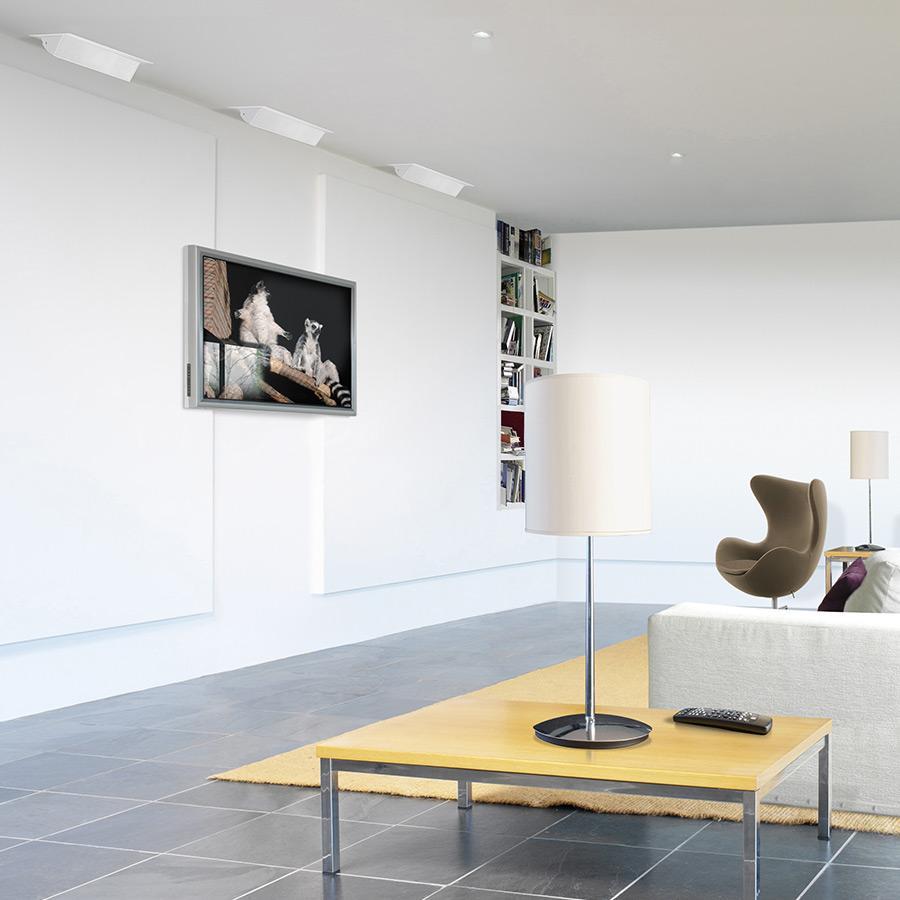

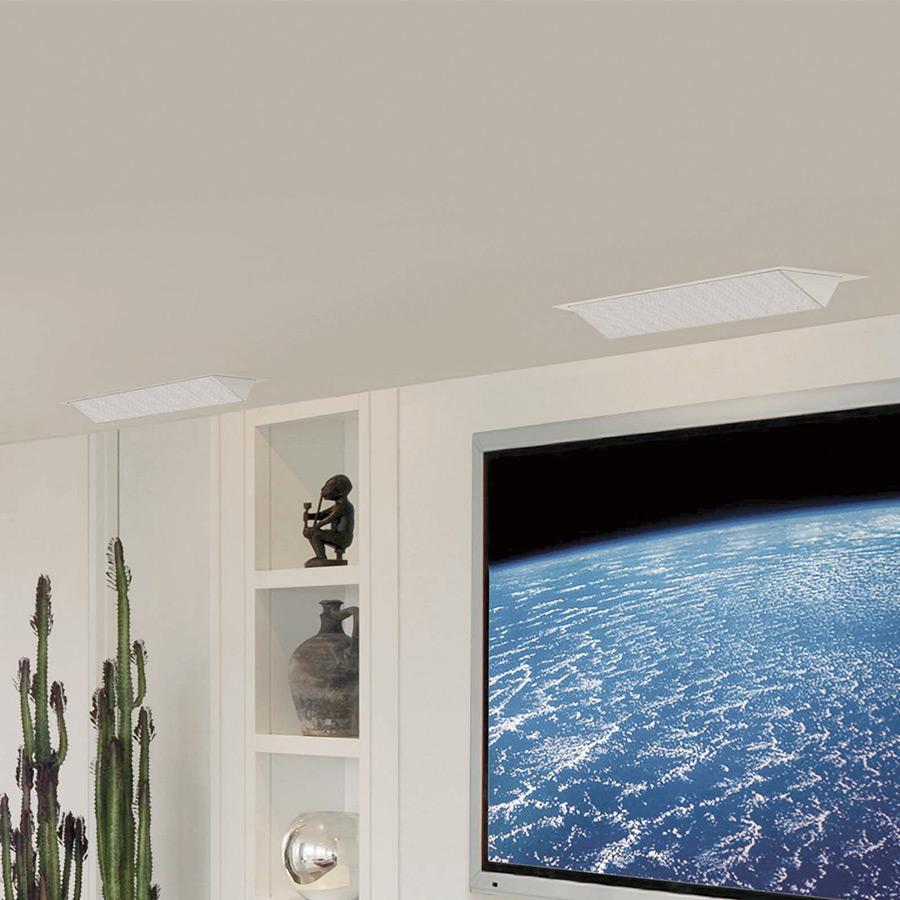

KEF's Ci Motorised Series are designed to lie flush with the ceiling when not in use - making them ideal for home theatre, especially in combination with motorised screens as part of a fully automated system.

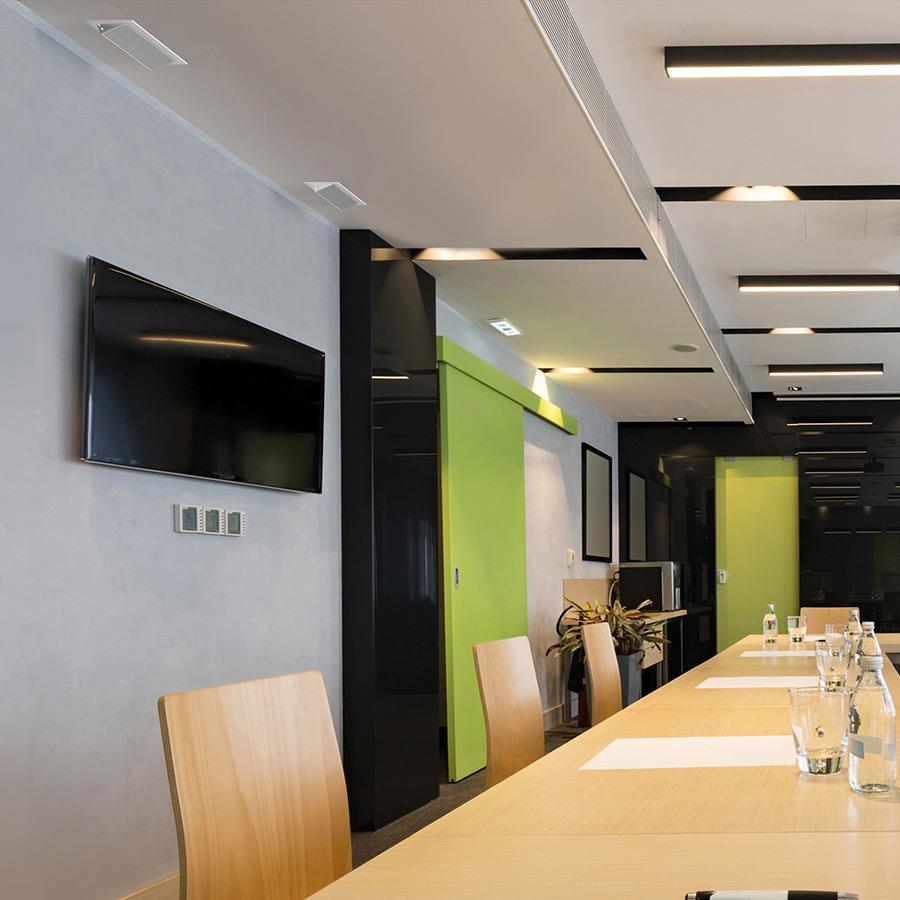

In the commercial environment they are highly suitable for a discreet solution in boardrooms. When required, the purr into position at the touch of a remote, to deliver a sweeping soundstage with rock solid imaging.
In the commercial environment they are highly suitable for a discreet solution in boardrooms. When required, the purr into position at the touch of a remote, to deliver a sweeping soundstage with rock solid imaging.
The Details
SPECIFICATIONS
Nomimal Impedance
8 Ohm
Sensitivity
87dB (2.83V/ 1m)
Crossover Frequencies
300Hz, 3kHz
Frequency Response
87 - 27k (±6dB) With back can/rear enclosure
Drive Units
LF / MF / HF : 2 x 75mm / 75mm / 15mm
Recommended Amplifier Power
10 - 100W
Features
Three-way In-Ceiling Uni-Q Array, Quiet Motorised
Product External Dimension (H X W X D)
128mm (5.04in.) / 377mm (14.84in.) / 125mm (4.92in.)
Cut-Out Dimensions (H X W)
112mm (4.41in.) / 354mm (13.94in.)
Mounting Thickness
Ceiling Thickness (Maximum): 20mm (0.79 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Mounting Depth From Surface
Product only : 120mm (4.72in.)
Net Weight
3.3 kg (7.26 lbs)
Unit Measurement
Piece

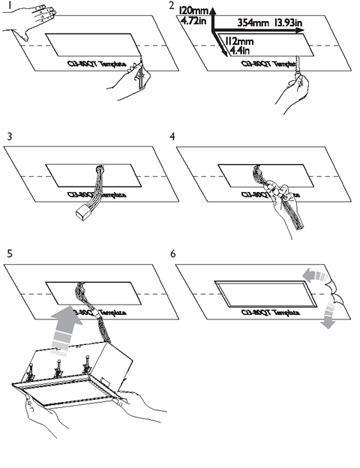

Installations
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.
Please visit our Ci Software Download page for more details.
