For the ultimate in Extreme Home Theatre, THX Certified to the level of Ultra and Select, the formidable KEF Ci-R Series Ci3160RLb-THX in-wall subwoofer has the deep bass and theatre thumping output capabilities of a traditional KEF subwoofer coupled with the ability to deliver all the drama and emotional intensity of full theatre sound quality.

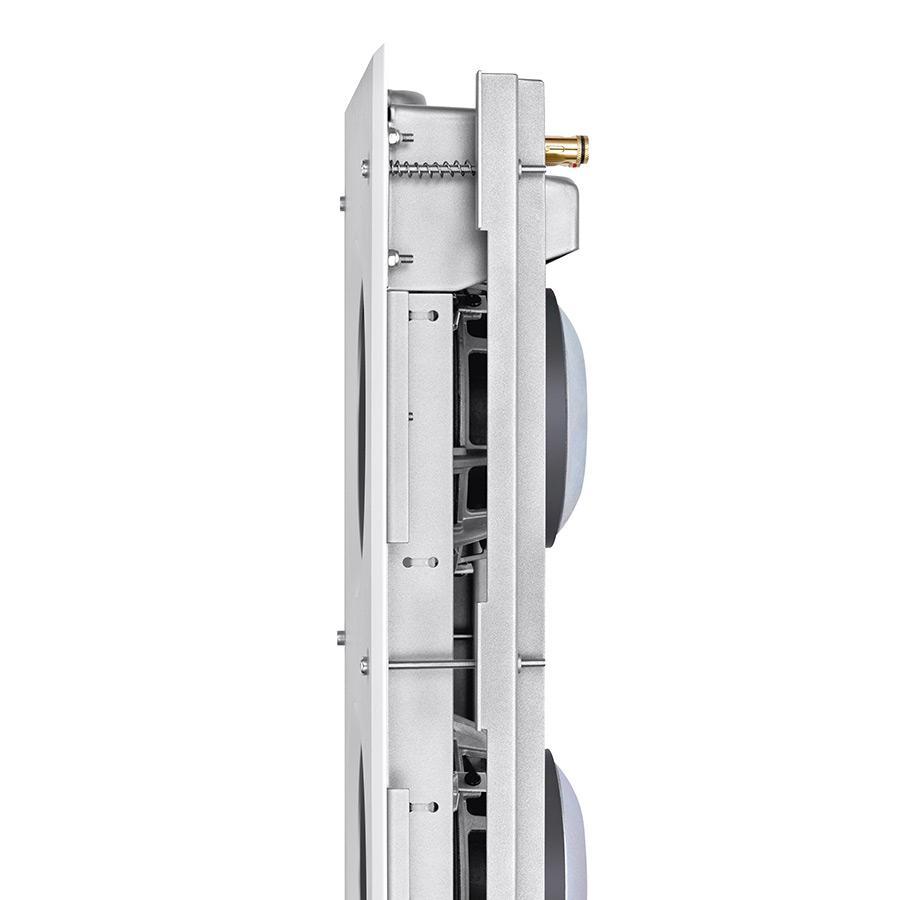

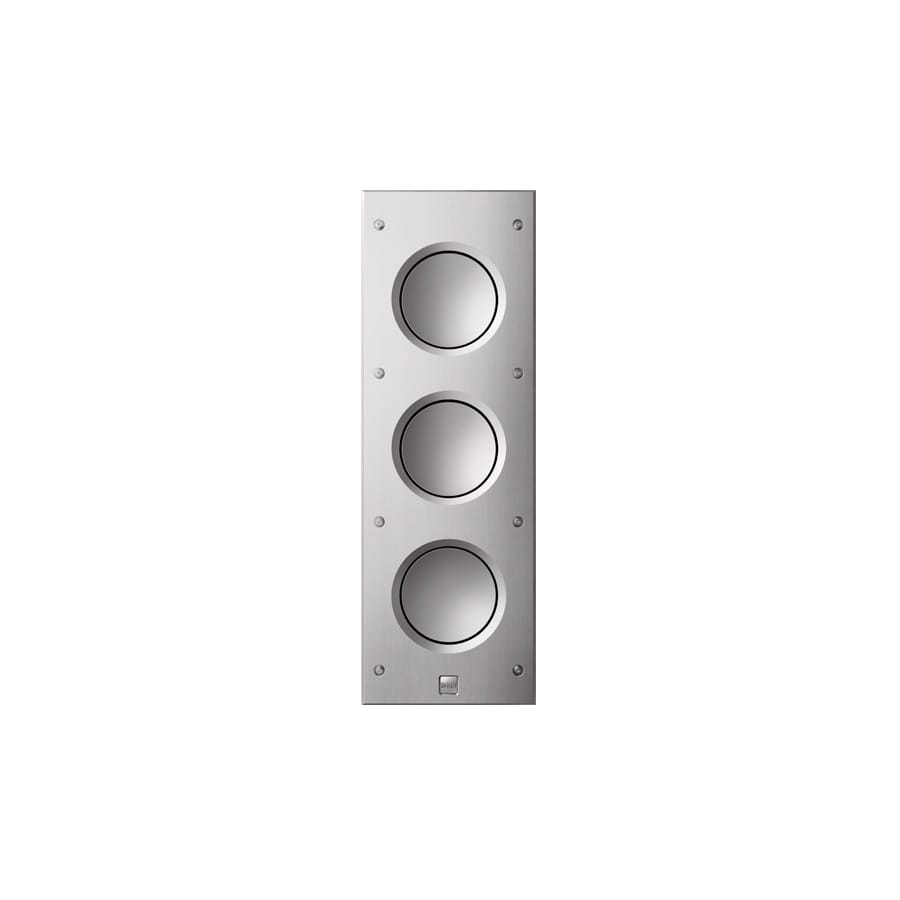

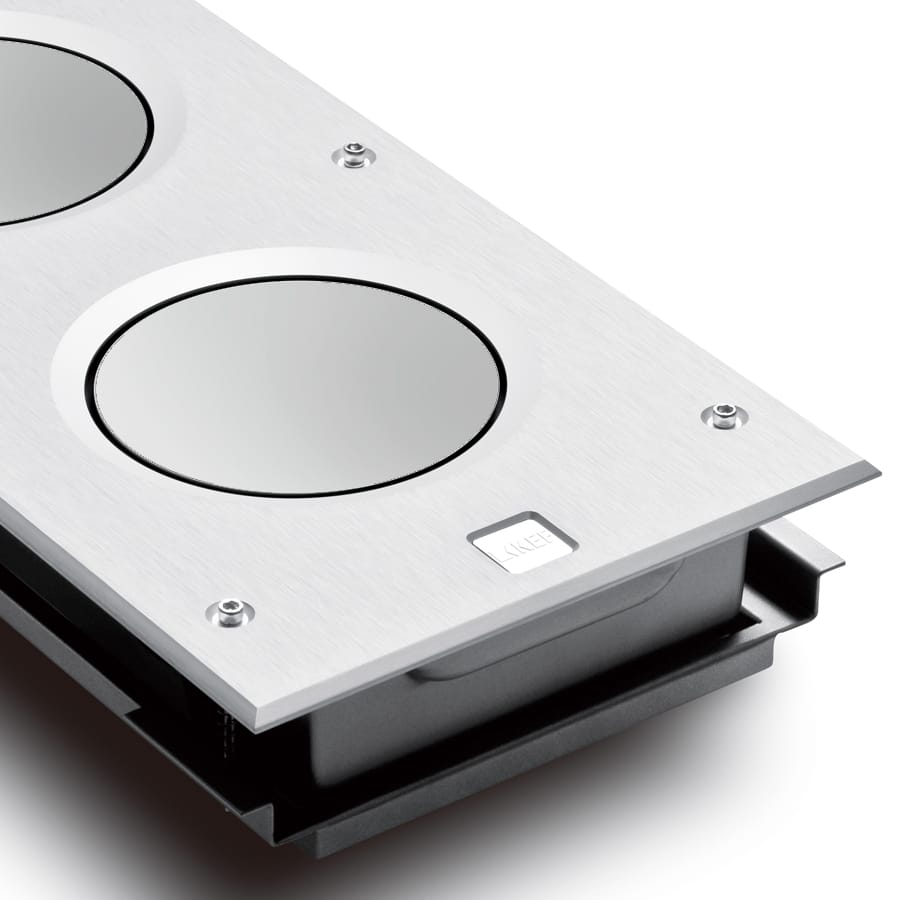

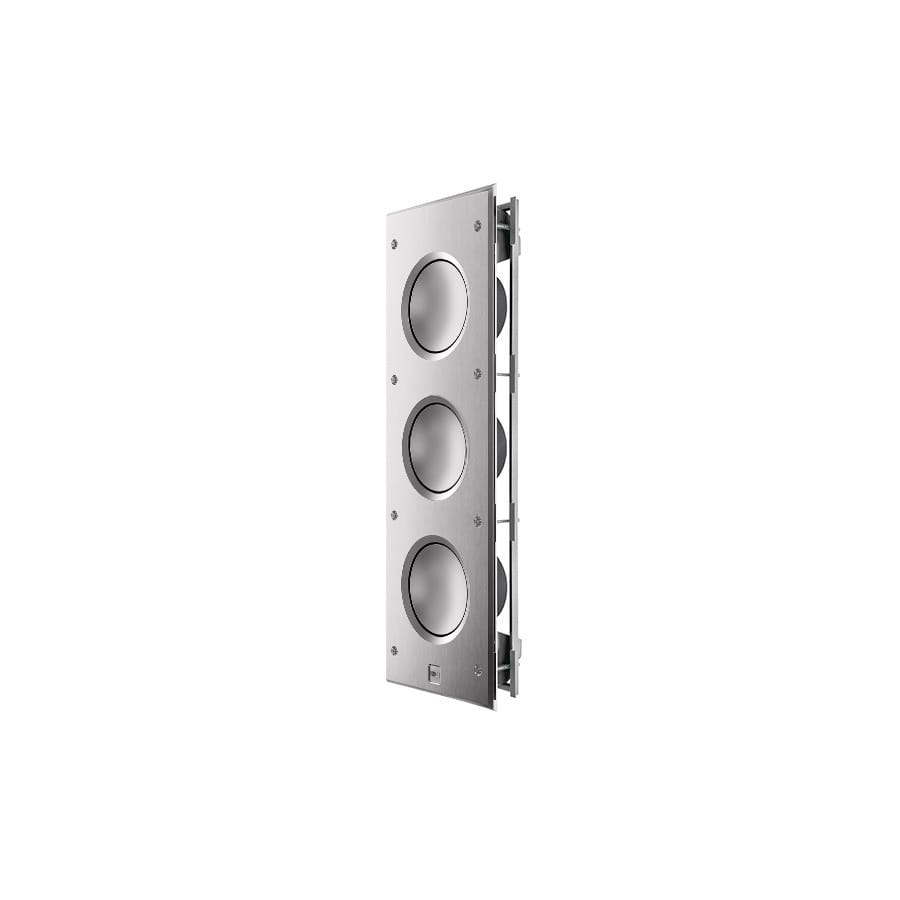

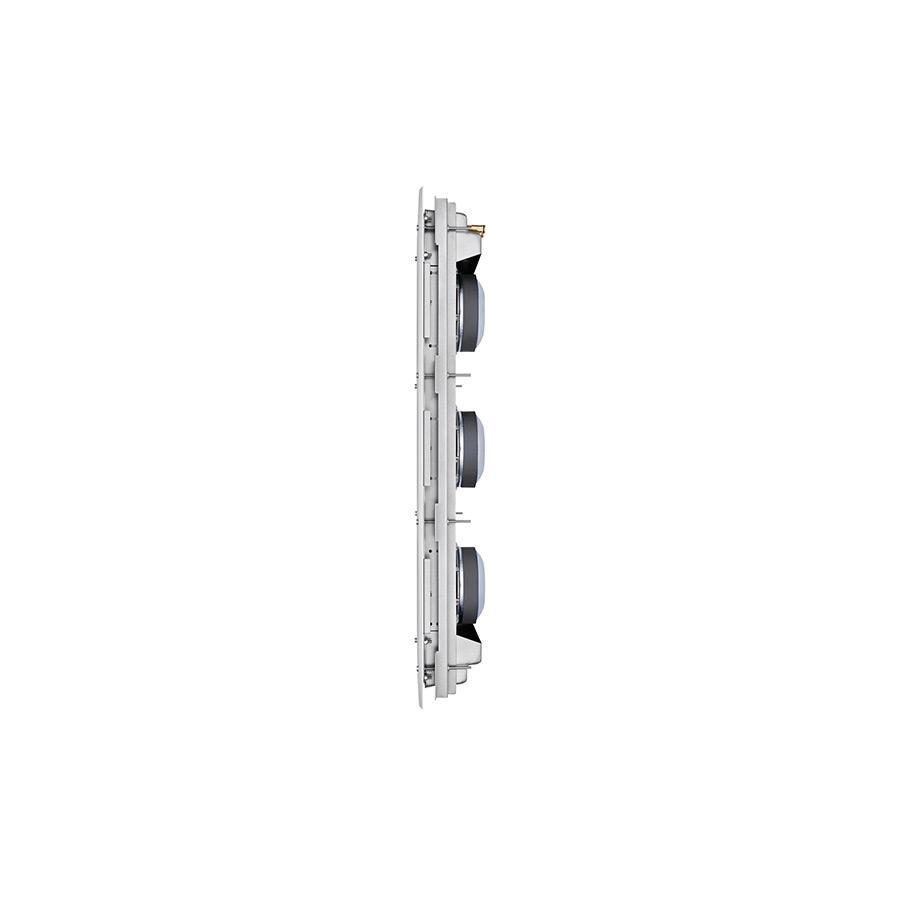

Ci3160RLb-THX
For the ultimate in Extreme Home Theatre, THX Certified to the level of Ultra and Select, the formidable Ci-R Series Ci3160RLb-THX in-wall subwoofer has the deep bass and theatre thumping output capabilities of a traditional KEF subwoofer coupled with the ability to deliver all the drama and emotional intensity of full theatre sound quality.
With three high-output 160mm sub-bass drivers mounted to a massive aluminium baffle the Ci3160RLb-THX must be matched with KEF’s powerful KASA500 system amplifier. Each KASA500 can power up to two of the Ci3160RLb-THX subwoofers for even the most demanding theatre installations.
With three high-output 160mm sub-bass drivers mounted to a massive aluminium baffle the Ci3160RLb-THX must be matched with KEF’s powerful KASA500 system amplifier. Each KASA500 can power up to two of the Ci3160RLb-THX subwoofers for even the most demanding theatre installations.
Ci3160RLb-THX is a THX Certified Ultra in-wall subwoofer. A deep understanding of the filmmaking process and surround sound is at the very heart of every THX® certified speaker system. Engineered with design characteristics of professional studio speakers, THX® recreates the tonal balance of the filmmaker's final mix in your living room. The results? Action sequences are impactful, and dialogue-driven moments are natural and engaging.
THX® certified subwoofers deliver the appropriate frequency response and high output and imaging quality of a traditional box speaker. This provides the best of both worlds - THX® surround sound performance from components that blend harmoniously with any interior.
THX® certified subwoofers deliver the appropriate frequency response and high output and imaging quality of a traditional box speaker. This provides the best of both worlds - THX® surround sound performance from components that blend harmoniously with any interior.
The Details
SPECIFICATIONS
Nominal Impedance
4 Ohms
Sensitivity
92dB (2.83V/ 1m)
Frequency Response
20Hz - 140Hz (±6dB) open backed
Drive Units
LF: 3 x 160mm (6.5 in.)
Amplifier Requirements
Product External Dimension (H X W X D)
680 x 230 x 96 mm (26.77 x 9.06 x 3.78 in.)
With Grille : 683 x 242 x 102.7 mm (26.89 x 9.53 x 4.04 in.)
With Grille : 683 x 242 x 102.7 mm (26.89 x 9.53 x 4.04 in.)
Cut-out Dimensions (H X W)
660 x 209mm (25.98 x 8.23 in.)
Wall Thickness (Maximum)
40mm (1.58 in.)
Wall Thickness (Minimum)
6mm (0.24 in.)
Mounting Depth From Surface
88.5mm (3.84 in.)
Net Weight
10.9 kg (24.1 lbs)
Unit Measurement
Piece
Downloads
Remarks
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE. THX, the THX logo, and Ultra are trademarks of THX Ltd. THX and the THX logo are registered in the U.S. and other jurisdictions. All rights reserved.
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.
Please visit our Ci Software Download page for more details.
